Intro to Light Weight Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic product that has actually gained prevalent acknowledgment for its exceptional thermal conductivity, electrical insulation, and mechanical stability at elevated temperature levels. With a hexagonal wurtzite crystal structure, AlN displays a distinct mix of residential or commercial properties that make it the most optimal substratum material for applications in electronic devices, optoelectronics, power components, and high-temperature settings. Its capability to effectively dissipate heat while keeping exceptional dielectric strength placements AlN as a superior alternative to typical ceramic substrates such as alumina and beryllium oxide. This short article explores the basic qualities of light weight aluminum nitride ceramics, looks into manufacture methods, and highlights its vital roles across sophisticated technical domains.

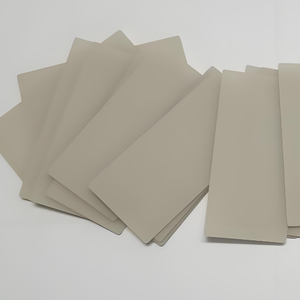

(Aluminum Nitride Ceramics)
Crystal Structure and Basic Feature
The performance of light weight aluminum nitride as a substrate material is mostly dictated by its crystalline framework and intrinsic physical residential properties. AlN adopts a wurtzite-type lattice made up of alternating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– normally surpassing 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value significantly surpasses those of other widely made use of ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN possesses a large bandgap of about 6.2 eV, causing excellent electrical insulation buildings also at heats. It likewise demonstrates reduced thermal development (CTE ≈ 4.5 × 10 â»â¶/ K), which carefully matches that of silicon and gallium arsenide, making it an ideal suit for semiconductor device product packaging. Moreover, AlN exhibits high chemical inertness and resistance to thaw metals, enhancing its viability for rough settings. These combined characteristics establish AlN as a leading candidate for high-power electronic substrates and thermally handled systems.
Manufacture and Sintering Technologies
Making top notch light weight aluminum nitride ceramics calls for precise powder synthesis and sintering methods to accomplish thick microstructures with very little contaminations. Due to its covalent bonding nature, AlN does not easily densify with traditional pressureless sintering. Therefore, sintering help such as yttrium oxide (Y TWO O THREE), calcium oxide (CaO), or rare planet aspects are usually added to advertise liquid-phase sintering and improve grain limit diffusion.
The manufacture process typically starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that grated, formed through methods like tape casting or shot molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Hot pushing or spark plasma sintering (SPS) can additionally boost thickness and thermal conductivity by minimizing porosity and promoting grain placement. Advanced additive manufacturing techniques are also being discovered to produce complex-shaped AlN components with customized thermal monitoring capabilities.
Application in Digital Product Packaging and Power Modules
One of the most famous uses of light weight aluminum nitride porcelains remains in digital product packaging, particularly for high-power gadgets such as protected gate bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power thickness enhance in contemporary electronics, effective warm dissipation comes to be vital to ensure integrity and long life. AlN substratums offer an optimal solution by incorporating high thermal conductivity with superb electric isolation, stopping short circuits and thermal runaway conditions.
Furthermore, AlN-based straight bound copper (DBC) and active steel brazed (AMB) substrates are progressively used in power module styles for electrical automobiles, renewable energy inverters, and commercial electric motor drives. Compared to standard alumina or silicon nitride substratums, AlN uses quicker warm transfer and much better compatibility with silicon chip coefficients of thermal growth, thus decreasing mechanical stress and boosting general system performance. Continuous research study aims to enhance the bonding strength and metallization strategies on AlN surfaces to more expand its application scope.
Use in Optoelectronic and High-Temperature Instruments
Beyond electronic product packaging, aluminum nitride ceramics play an essential duty in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is extensively made use of as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications calling for sterilization, noticing, and optical communication. Its vast bandgap and low absorption coefficient in the UV array make it a perfect candidate for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capability to operate accurately at temperature levels exceeding 1000 ° C makes it appropriate for use in sensors, thermoelectric generators, and elements exposed to extreme thermal lots. In aerospace and protection sectors, AlN-based sensor plans are utilized in jet engine surveillance systems and high-temperature control devices where conventional materials would certainly stop working. Continual advancements in thin-film deposition and epitaxial growth strategies are expanding the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Reliability
A crucial consideration for any substrate material is its long-lasting dependability under functional stress and anxieties. Light weight aluminum nitride demonstrates remarkable environmental security contrasted to numerous various other ceramics. It is highly resistant to deterioration from acids, antacid, and molten metals, ensuring sturdiness in hostile chemical settings. However, AlN is vulnerable to hydrolysis when subjected to moisture at elevated temperatures, which can weaken its surface area and lower thermal performance.
To reduce this issue, safety layers such as silicon nitride (Si two N â‚„), light weight aluminum oxide, or polymer-based encapsulation layers are usually applied to boost moisture resistance. In addition, careful securing and product packaging approaches are applied during tool setting up to keep the stability of AlN substratums throughout their life span. As ecological laws end up being a lot more rigorous, the non-toxic nature of AlN also places it as a recommended option to beryllium oxide, which positions health and wellness threats during handling and disposal.
Verdict
Aluminum nitride ceramics represent a class of sophisticated materials uniquely fit to attend to the growing needs for reliable thermal management and electrical insulation in high-performance electronic and optoelectronic systems. Their remarkable thermal conductivity, chemical security, and compatibility with semiconductor modern technologies make them the most optimal substrate material for a wide variety of applications– from automotive power modules to deep UV LEDs and high-temperature sensing units. As construction modern technologies continue to develop and economical production methods develop, the fostering of AlN substrates is anticipated to rise considerably, driving development in next-generation digital and photonic devices.
