1. The Scientific research and Framework of Alumina Porcelain Products
1.1 Crystallography and Compositional Variations of Light Weight Aluminum Oxide

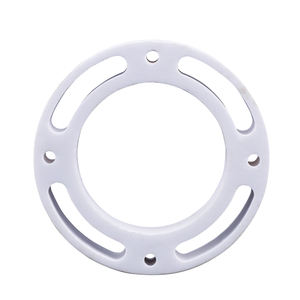

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from aluminum oxide (Al two O FIVE), a compound renowned for its extraordinary equilibrium of mechanical toughness, thermal security, and electric insulation.
The most thermodynamically stable and industrially relevant stage of alumina is the alpha (α) phase, which takes shape in a hexagonal close-packed (HCP) framework coming from the diamond household.
In this plan, oxygen ions form a dense latticework with aluminum ions occupying two-thirds of the octahedral interstitial websites, causing a highly secure and robust atomic structure.
While pure alumina is theoretically 100% Al â‚‚ O FIVE, industrial-grade materials usually contain tiny portions of ingredients such as silica (SiO â‚‚), magnesia (MgO), or yttria (Y TWO O TWO) to control grain growth throughout sintering and boost densification.
Alumina ceramics are categorized by purity degrees: 96%, 99%, and 99.8% Al â‚‚ O six prevail, with higher pureness associating to improved mechanical buildings, thermal conductivity, and chemical resistance.
The microstructure– particularly grain size, porosity, and phase circulation– plays a critical duty in figuring out the last performance of alumina rings in service atmospheres.
1.2 Secret Physical and Mechanical Characteristic
Alumina ceramic rings show a suite of homes that make them vital in demanding industrial setups.
They have high compressive stamina (approximately 3000 MPa), flexural stamina (usually 350– 500 MPa), and excellent solidity (1500– 2000 HV), making it possible for resistance to wear, abrasion, and contortion under lots.
Their reduced coefficient of thermal growth (around 7– 8 × 10 â»â¶/ K) guarantees dimensional stability throughout broad temperature level arrays, decreasing thermal tension and splitting throughout thermal cycling.
Thermal conductivity varieties from 20 to 30 W/m · K, depending on pureness, allowing for moderate warm dissipation– enough for numerous high-temperature applications without the need for active cooling.
( Alumina Ceramics Ring)
Electrically, alumina is an outstanding insulator with a quantity resistivity exceeding 10 ¹ⴠΩ · centimeters and a dielectric strength of around 10– 15 kV/mm, making it excellent for high-voltage insulation parts.
In addition, alumina shows outstanding resistance to chemical strike from acids, alkalis, and molten metals, although it is at risk to strike by solid antacid and hydrofluoric acid at elevated temperatures.
2. Manufacturing and Precision Design of Alumina Rings
2.1 Powder Processing and Forming Methods
The manufacturing of high-performance alumina ceramic rings starts with the selection and prep work of high-purity alumina powder.
Powders are typically manufactured using calcination of light weight aluminum hydroxide or through advanced methods like sol-gel processing to accomplish fine particle size and narrow dimension distribution.
To create the ring geometry, several shaping techniques are used, consisting of:
Uniaxial pushing: where powder is compressed in a die under high pressure to form a “green” ring.
Isostatic pushing: applying consistent pressure from all directions using a fluid tool, causing greater density and even more consistent microstructure, particularly for facility or large rings.
Extrusion: suitable for lengthy round forms that are later reduced right into rings, typically utilized for lower-precision applications.
Shot molding: made use of for intricate geometries and limited resistances, where alumina powder is mixed with a polymer binder and infused right into a mold.
Each approach influences the final thickness, grain placement, and flaw distribution, necessitating mindful process choice based upon application requirements.
2.2 Sintering and Microstructural Development
After shaping, the green rings undergo high-temperature sintering, generally between 1500 ° C and 1700 ° C in air or controlled ambiences.
Throughout sintering, diffusion systems drive particle coalescence, pore removal, and grain development, leading to a fully dense ceramic body.
The price of home heating, holding time, and cooling profile are precisely controlled to stop cracking, bending, or exaggerated grain development.
Ingredients such as MgO are often introduced to prevent grain limit wheelchair, causing a fine-grained microstructure that improves mechanical stamina and dependability.
Post-sintering, alumina rings might undertake grinding and washing to achieve limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), essential for securing, birthing, and electrical insulation applications.
3. Practical Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely utilized in mechanical systems as a result of their wear resistance and dimensional security.
Secret applications consist of:
Sealing rings in pumps and valves, where they stand up to disintegration from rough slurries and harsh fluids in chemical handling and oil & gas markets.
Birthing parts in high-speed or destructive environments where metal bearings would certainly degrade or require frequent lubrication.
Overview rings and bushings in automation equipment, offering low friction and lengthy life span without the demand for greasing.
Use rings in compressors and generators, reducing clearance between revolving and fixed components under high-pressure problems.
Their capacity to keep performance in dry or chemically hostile environments makes them superior to numerous metallic and polymer choices.
3.2 Thermal and Electric Insulation Roles
In high-temperature and high-voltage systems, alumina rings work as crucial shielding components.
They are used as:
Insulators in heating elements and heater elements, where they support resisting wires while withstanding temperatures over 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, stopping electric arcing while maintaining hermetic seals.
Spacers and support rings in power electronic devices and switchgear, separating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave devices, where their low dielectric loss and high breakdown toughness guarantee signal honesty.
The mix of high dielectric stamina and thermal security allows alumina rings to operate dependably in environments where organic insulators would weaken.
4. Product Developments and Future Expectation
4.1 Composite and Doped Alumina Systems
To additionally improve performance, researchers and makers are establishing advanced alumina-based compounds.
Examples include:
Alumina-zirconia (Al â‚‚ O FOUR-ZrO TWO) compounds, which show improved crack durability with improvement toughening devices.
Alumina-silicon carbide (Al two O THREE-SiC) nanocomposites, where nano-sized SiC fragments enhance solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain boundary chemistry to boost high-temperature stamina and oxidation resistance.
These hybrid products prolong the functional envelope of alumina rings into more severe problems, such as high-stress dynamic loading or quick thermal cycling.
4.2 Arising Fads and Technological Assimilation
The future of alumina ceramic rings lies in clever assimilation and precision production.
Trends consist of:
Additive production (3D printing) of alumina parts, making it possible for complex internal geometries and tailored ring styles formerly unreachable via standard approaches.
Functional grading, where make-up or microstructure differs throughout the ring to optimize performance in various areas (e.g., wear-resistant external layer with thermally conductive core).
In-situ tracking using embedded sensors in ceramic rings for predictive upkeep in commercial machinery.
Boosted usage in renewable energy systems, such as high-temperature gas cells and focused solar power plants, where product integrity under thermal and chemical stress is critical.
As markets require higher performance, longer life expectancies, and reduced maintenance, alumina ceramic rings will continue to play an essential function in making it possible for next-generation design solutions.
