1. Product Principles and Microstructural Design
1.1 Structure and Crystallographic Security of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al â‚‚ O FIVE), especially in its alpha stage, is a fully oxidized ceramic with a corundum-type hexagonal close-packed structure, offering extraordinary thermal security, chemical inertness, and mechanical toughness at elevated temperatures.
High-purity alumina (normally 95– 99.9% Al â‚‚ O FIVE) is liked for nozzle applications because of its minimal pollutant content, which minimizes grain boundary weakening and boosts resistance to thermal and chemical destruction.
The microstructure, including fine, equiaxed grains, is crafted during sintering to minimize porosity and take full advantage of density, straight influencing the nozzle’s disintegration resistance and structural integrity under high-velocity liquid flow.
Additives such as MgO are usually presented in trace total up to prevent irregular grain growth throughout sintering, guaranteeing an uniform microstructure that sustains long-term integrity.
1.2 Mechanical and Thermal Qualities Relevant to Nozzle Performance
Alumina ceramics exhibit a Vickers hardness surpassing 1800 HV, making them extremely resistant to unpleasant wear from particulate-laden liquids, an essential attribute in applications such as sandblasting and abrasive waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive stamina over 2 Grade point average, alumina nozzles keep dimensional security under high-pressure operation, usually varying from 100 to 400 MPa in industrial systems.
Thermally, alumina preserves its mechanical buildings as much as 1600 ° C, with a low thermal development coefficient (~ 8 × 10 â»â¶/ K) that gives outstanding resistance to thermal shock– necessary when revealed to fast temperature level fluctuations throughout startup or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate localized heat without inducing thermal slopes that can lead to breaking, balancing insulation and heat monitoring needs.
2. Production Processes and Geometric Accuracy
2.1 Shaping and Sintering Methods for Nozzle Construction
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is refined right into an eco-friendly body utilizing methods such as cool isostatic pressing (CIP), shot molding, or extrusion, depending on the desired geometry and batch size.

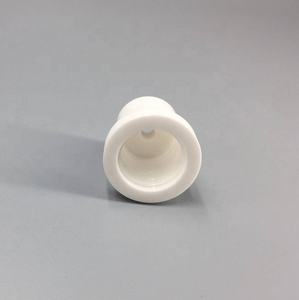

( Alumina Ceramic Nozzles)
Cold isostatic pushing applies consistent pressure from all instructions, yielding an uniform thickness distribution critical for minimizing flaws throughout sintering.
Shot molding is used for intricate nozzle forms with inner tapers and fine orifices, allowing high dimensional precision and reproducibility in automation.
After shaping, the green compacts undertake a two-stage thermal treatment: debinding to get rid of organic binders and sintering at temperature levels between 1500 ° C and 1650 ° C to accomplish near-theoretical thickness via solid-state diffusion.
Exact control of sintering environment and heating/cooling rates is vital to protect against warping, cracking, or grain coarsening that can jeopardize nozzle performance.
2.2 Machining, Polishing, and Quality Control
Post-sintering, alumina nozzles often need precision machining to attain tight tolerances, particularly in the orifice area where circulation dynamics are most sensitive to surface area coating and geometry.
Ruby grinding and splashing are made use of to refine internal and external surface areas, attaining surface roughness values below 0.1 µm, which lowers circulation resistance and protects against bit accumulation.
The orifice, typically varying from 0.3 to 3.0 mm in diameter, need to be free of micro-cracks and chamfers to make sure laminar circulation and constant spray patterns.
Non-destructive testing approaches such as optical microscopy, X-ray examination, and stress cycling tests are employed to validate structural integrity and efficiency consistency before deployment.
Personalized geometries, including convergent-divergent (de Laval) accounts for supersonic circulation or multi-hole selections for fan spray patterns, are significantly made making use of sophisticated tooling and computer-aided style (CAD)-driven manufacturing.
3. Functional Benefits Over Different Nozzle Products
3.1 Superior Erosion and Corrosion Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina displays far greater resistance to rough wear, specifically in environments involving silica sand, garnet, or various other tough abrasives made use of in surface area prep work and cutting.
Metal nozzles degrade swiftly because of micro-fracturing and plastic deformation, calling for regular substitute, whereas alumina nozzles can last 3– 5 times longer, significantly lowering downtime and operational prices.
Furthermore, alumina is inert to most acids, antacid, and solvents, making it ideal for chemical spraying, etching, and cleaning processes where metallic parts would wear away or pollute the liquid.
This chemical security is particularly valuable in semiconductor manufacturing, pharmaceutical processing, and food-grade applications calling for high purity.
3.2 Thermal and Electrical Insulation Residence
Alumina’s high electric resistivity (> 10 ¹ⴠΩ · centimeters) makes it excellent for usage in electrostatic spray layer systems, where it avoids charge leakage and ensures consistent paint atomization.
Its thermal insulation capability enables secure procedure in high-temperature spraying settings, such as fire splashing or thermal cleansing, without warm transfer to surrounding components.
Unlike metals, alumina does not catalyze undesirable chain reaction in reactive fluid streams, preserving the honesty of sensitive solutions.
4. Industrial Applications and Technical Impact
4.1 Duties in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are crucial in abrasive blasting systems for corrosion removal, paint stripping, and surface area texturing in automotive, aerospace, and construction sectors.
Their ability to maintain a regular orifice diameter over prolonged usage guarantees uniform rough speed and influence angle, directly influencing surface coating high quality and process repeatability.
In abrasive waterjet cutting, alumina focusing tubes assist the high-pressure water-abrasive blend, holding up against abrasive pressures that would rapidly weaken softer materials.
4.2 Usage in Additive Production, Spray Finish, and Liquid Control
In thermal spray systems, such as plasma and fire splashing, alumina nozzles direct high-temperature gas flows and liquified fragments onto substratums, benefiting from their thermal shock resistance and dimensional security.
They are additionally used in precision spray nozzles for agricultural chemicals, inkjet systems, and fuel atomization, where wear resistance guarantees long-term application precision.
In 3D printing, especially in binder jetting and material extrusion, alumina nozzles supply fine powders or viscous pastes with very little clogging or put on.
Arising applications include microfluidic systems and lab-on-a-chip tools, where miniaturized alumina elements supply durability and biocompatibility.
In recap, alumina ceramic nozzles represent a critical crossway of products science and commercial design.
Their remarkable combination of firmness, thermal security, and chemical resistance makes it possible for reputable efficiency in a few of the most demanding fluid handling settings.
As commercial procedures push toward greater stress, finer tolerances, and longer service intervals, alumina ceramics remain to set the requirement for durable, high-precision circulation control elements.
