1. Architectural Qualities and Distinct Bonding Nature
1.1 Crystal Design and Layered Atomic Setup

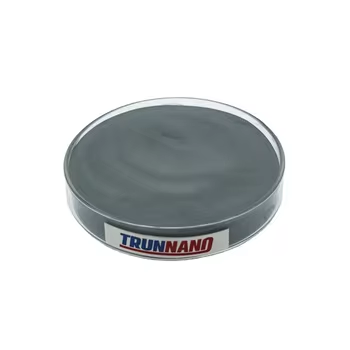

(Ti₃AlC₂ powder)
Ti two AlC â‚‚ belongs to an unique class of layered ternary porcelains referred to as MAX phases, where “M” signifies a very early transition steel, “A” represents an A-group (primarily IIIA or IVA) aspect, and “X” represents carbon and/or nitrogen.
Its hexagonal crystal framework (area group P6 TWO/ mmc) includes rotating layers of edge-sharing Ti ₆ C octahedra and light weight aluminum atoms arranged in a nanolaminate style: Ti– C– Ti– Al– Ti– C– Ti, creating a 312-type MAX stage.
This bought piling lead to strong covalent Ti– C bonds within the shift metal carbide layers, while the Al atoms stay in the A-layer, contributing metallic-like bonding characteristics.
The mix of covalent, ionic, and metallic bonding enhances Ti three AlC â‚‚ with an unusual crossbreed of ceramic and metal residential properties, differentiating it from traditional monolithic porcelains such as alumina or silicon carbide.
High-resolution electron microscopy discloses atomically sharp interfaces between layers, which facilitate anisotropic physical behaviors and distinct contortion devices under tension.
This split design is crucial to its damages tolerance, making it possible for mechanisms such as kink-band development, delamination, and basic airplane slip– uncommon in breakable porcelains.
1.2 Synthesis and Powder Morphology Control
Ti ₃ AlC ₂ powder is normally synthesized through solid-state reaction paths, including carbothermal reduction, warm pressing, or spark plasma sintering (SPS), starting from elemental or compound forerunners such as Ti, Al, and carbon black or TiC.
A common reaction pathway is: 3Ti + Al + 2C → Ti Five AlC ₂, performed under inert ambience at temperature levels between 1200 ° C and 1500 ° C to prevent light weight aluminum dissipation and oxide development.
To acquire great, phase-pure powders, exact stoichiometric control, prolonged milling times, and enhanced home heating accounts are essential to subdue competing stages like TiC, TiAl, or Ti â‚‚ AlC.
Mechanical alloying adhered to by annealing is widely used to improve sensitivity and homogeneity at the nanoscale.
The resulting powder morphology– ranging from angular micron-sized particles to plate-like crystallites– depends upon processing specifications and post-synthesis grinding.
Platelet-shaped fragments mirror the integral anisotropy of the crystal framework, with larger measurements along the basic planes and thin piling in the c-axis direction.
Advanced characterization using X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS) ensures stage purity, stoichiometry, and fragment size circulation suitable for downstream applications.
2. Mechanical and Functional Properties
2.1 Damage Tolerance and Machinability

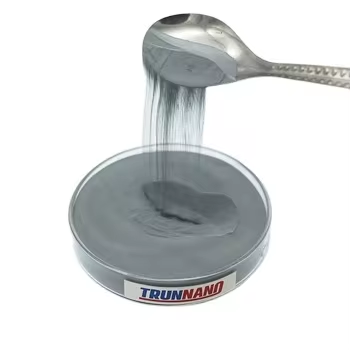

( Ti₃AlC₂ powder)
Among the most impressive features of Ti four AlC two powder is its outstanding damage resistance, a property rarely found in standard porcelains.
Unlike brittle materials that crack catastrophically under load, Ti four AlC two shows pseudo-ductility via devices such as microcrack deflection, grain pull-out, and delamination along weak Al-layer interfaces.
This allows the material to take in power prior to failure, leading to higher crack toughness– commonly ranging from 7 to 10 MPa · m ¹/ ²– compared to
