Check out the thorough guide to oil immersed transformers, including oil immersed power transformers and oil immersed distribution transformers. Discover their functioning concepts, kinds, advantages, and advancing function in smart grids and renewable energy.
1. Introduction to Oil Immersed Transformers
In the complex internet of our modern-day electrical grid, transformers play an essential function, silently tipping voltage up and down to make sure power can be transferred efficiently over fars away and dispersed securely to our homes and sectors. Among the different types offered, the oil submersed transformer stands as a testament to tested dependability and sturdiness. For decades, these workhorses have developed the backbone of power systems worldwide.
An oil immersed transformer is a type of electrical transformer that uses a customized shielding oil as both a coolant and a shielding tool. This layout is mainly made use of for medium to high-power applications, making it a foundation of electric framework. This overview dives deep into the globe of oil submersed power transformers and oil immersed circulation transformers, discovering their technology, applications, and their developing role in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer consists of a magnetic core and copper or aluminum windings housed inside a secured container loaded with shielding oil. The key function of the oil is twofold:
1. Insulation: The oil has high dielectric stamina, successfully insulating the high-voltage windings from the transformer’s core and grounded storage tank. This stops brief circuits and electric malfunctions.
2. Air conditioning: As the transformer operates, the windings produce substantial heat due to I ² R losses. The flowing oil absorbs this warm, convects it to the transformer’s storage tank walls, and dissipates it into the bordering air. Larger systems often include radiators or fins to enhance the area for extra reliable air conditioning.
This dual-purpose use oil makes the oil submersed transformer extremely effective and durable, with the ability of taking care of high lots and withstanding short-term overloads better than many dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil immersed transformers, they serve distinct functions within the power system network. Recognizing the distinction is important.
An oil submersed power transformer is a heavyweight, normally used in transmission networks at generating terminals and major substations. Their primary role is to “step-up” the voltage created at the power plant to very high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for additional circulation. They are identified by their very high power rankings (typically exceeding 100 MVA), complicated construction, and on-load tap changers for voltage guideline.
An oil involved distribution transformer, on the other hand, performs the last action in the power delivery chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the low voltages (e.g., 400/230 V) utilized by commercial and residential consumers. You typically discover them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power scores (usually up to 2,500 kVA), and are created for optimal efficiency at reduced, more consistent tons.

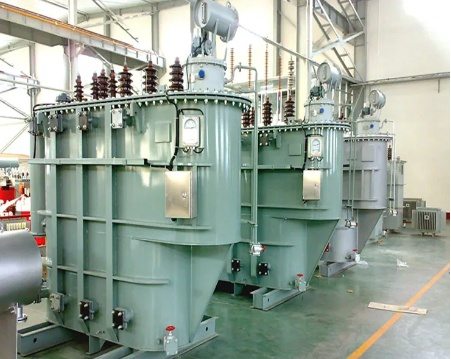

(Oil immersed power transformer)
2. Key Advantages of Oil Immersed Transformers
The long-lasting appeal of the oil submersed transformer is not unintentional. It supplies a collection of engaging advantages that make it the recommended choice for lots of requiring applications.
2.1 Superior Air Conditioning and Overload Capacity
The exceptional thermal capability of oil contrasted to air enables an oil submersed power transformer to take care of and dissipate warm a lot more properly. This equates to a higher overload capacity. Throughout periods of peak power demand, an oil immersed transformer can handle short-term overloads without suffering damages, an essential feature for keeping grid stability. The oil’s blood circulation makes certain even warmth distribution, preventing localized hot spots that can degrade insulation with time.
2.2 Improved Insulation and Long Service Life
The mix of top notch mineral oil and meticulously fertilized paper insulation develops a dielectric system of exceptional strength. This durable insulation system safeguards the transformer from voltage surges and transients, adding to a functional life expectancy that can reach 30-40 years or more with correct upkeep. The sealed storage tank likewise shields the interior components from dampness, dirt, and other climatic impurities.
2.3 High Efficiency and Cost-Effectiveness
For high-power applications, the oil immersed transformer is typically one of the most affordable choice. The materials used– mineral oil, steel tank, and copper/aluminum windings– offer a favorable balance of efficiency and price. The high effectiveness of these transformers, especially at their rated load, causes reduced energy losses over their life time, resulting in considerable expense savings for energy companies and big commercial customers.
3. Hot Topics and Future Trends
The world of oil immersed transformers is not fixed. It is continually progressing to fulfill brand-new obstacles and integrate with modern innovations.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and safety problems are driving a substantial change away from traditional mineral oil. The marketplace is quickly taking on oil submersed transformers full of biodegradable esters (artificial or all-natural). These oils supply a greater fire factor (making them K-class fire-resistant), are much less poisonous, and are easily biodegradable, dramatically reducing the ecological effect in instance of a leak. This fad is making oil submersed circulation transformers safer for installment in urban locations and environmentally delicate areas.
3.2 Assimilation with Smart Grids and IoT
The modern-day oil involved power transformer is coming to be a smart node in the clever grid. Sensors are being integrated to monitor crucial criteria in real-time, including:
Dissolved Gas Analysis (DGA): Discovering mistake gases created within the oil to forecast incipient faults.
Temperature Tracking: Tracking top-oil and hotspot temperature levels.
Tons and Power Quality Monitoring.
This information, transferred through IoT (Internet of Points) systems, allows predictive upkeep, stops unplanned failures, and maximizes transformer application and lifespan.
3.3 Supporting the Renewable Resource Shift
The worldwide push for renewables is creating brand-new need for oil immersed transformers. Large solar farms and wind power installments need robust oil immersed power transformers to tip up the created voltage to transmission levels. Moreover, the intermittent nature of renewables places higher tension on grid elements, and the proven reliability and overload capability of oil immersed transformers make them perfect for this important function.
4. Selection and Maintenance Finest Practices
Picking the right transformer and maintaining it effectively is vital to a dependable power system.
4.1 How to Pick the Right Oil Immersed Transformer
Selecting between an oil submersed power transformer and an oil submersed distribution transformer depends upon the application. Secret considerations include:
1. Voltage Degree and kVA Score: Match the transformer’s specifications to your system’s requirements.
2. Application: Transmission substation, plant, or business circulation.
3. Area: Indoor vs. exterior, environmental problems, and fire safety and security regulations (which may influence the choice of insulating oil).
4. Efficiency Criteria: Abide by regional efficiency criteria like DOE (USA) or EU CoC (Europe).
5. Budget: Think about both the initial capital cost and the complete expense of possession, including losses.
(Oil immersed distribution transformer)
4.2 Important Maintenance for Durability
Aggressive maintenance is essential for any kind of oil submersed transformer. A comprehensive program should include:
1. Normal Oil Sampling and Testing: Regular DGA and testing of dielectric stamina and moisture content are the most effective methods to assess the health and wellness of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for splits, contamination, or leakages.
3. Tap Changer Upkeep: Regular examination and servicing of on-load or off-load tap changers.
4. Maintain it Clean and Dry: Making sure the tank outside, radiators, and breathers are tidy and useful.
The oil immersed transformer, in its functions as both a high-capacity oil immersed power transformer and a common oil submersed circulation transformer, stays an irreplaceable component of our international power facilities. Its tested layout, coupled with ongoing developments in protecting fluids and electronic surveillance, guarantees it will continue to be a reliable, reliable, and smart solution for powering our globe for decades to come. As we develop the grids of the future, incorporating more renewables and digital knowledge, the robust and versatile oil immersed transformer will certainly be at the heart of it.
