1. Material Basics and Morphological Advantages
1.1 Crystal Structure and Chemical Structure

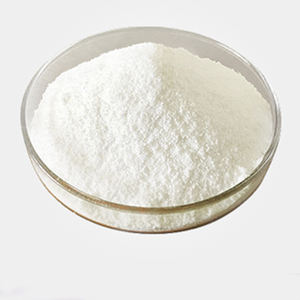

(Spherical alumina)
Round alumina, or round aluminum oxide (Al two O TWO), is a synthetically generated ceramic product defined by a well-defined globular morphology and a crystalline framework mainly in the alpha (α) stage.
Alpha-alumina, the most thermodynamically stable polymorph, features a hexagonal close-packed setup of oxygen ions with aluminum ions occupying two-thirds of the octahedral interstices, resulting in high lattice energy and phenomenal chemical inertness.
This phase exhibits exceptional thermal security, keeping stability as much as 1800 ° C, and stands up to response with acids, antacid, and molten metals under the majority of commercial problems.
Unlike uneven or angular alumina powders stemmed from bauxite calcination, spherical alumina is engineered through high-temperature processes such as plasma spheroidization or flame synthesis to accomplish uniform roundness and smooth surface appearance.
The makeover from angular precursor particles– commonly calcined bauxite or gibbsite– to dense, isotropic spheres gets rid of sharp sides and internal porosity, boosting packaging efficiency and mechanical durability.
High-purity qualities (≥ 99.5% Al ₂ O TWO) are necessary for electronic and semiconductor applications where ionic contamination need to be reduced.
1.2 Particle Geometry and Packing Behavior
The specifying attribute of round alumina is its near-perfect sphericity, typically measured by a sphericity index > 0.9, which dramatically influences its flowability and packing thickness in composite systems.
In comparison to angular fragments that interlock and produce voids, round particles roll previous each other with marginal friction, enabling high solids filling during solution of thermal user interface materials (TIMs), encapsulants, and potting compounds.
This geometric harmony enables maximum theoretical packaging thickness surpassing 70 vol%, much exceeding the 50– 60 vol% typical of irregular fillers.
Greater filler filling straight converts to boosted thermal conductivity in polymer matrices, as the continual ceramic network provides effective phonon transport pathways.
Additionally, the smooth surface area minimizes endure processing equipment and decreases thickness surge throughout mixing, boosting processability and dispersion security.
The isotropic nature of rounds likewise avoids orientation-dependent anisotropy in thermal and mechanical residential or commercial properties, making certain consistent performance in all instructions.
2. Synthesis Techniques and Quality Assurance
2.1 High-Temperature Spheroidization Methods
The production of round alumina mostly counts on thermal techniques that thaw angular alumina fragments and permit surface area tension to improve them right into spheres.

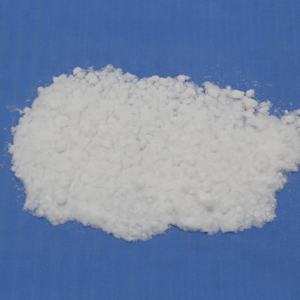

( Spherical alumina)
Plasma spheroidization is the most extensively utilized commercial approach, where alumina powder is infused right into a high-temperature plasma fire (approximately 10,000 K), triggering rapid melting and surface tension-driven densification right into best spheres.
The liquified droplets solidify quickly throughout flight, forming thick, non-porous fragments with consistent dimension circulation when coupled with exact classification.
Alternative approaches include flame spheroidization using oxy-fuel torches and microwave-assisted heating, though these normally supply lower throughput or less control over particle size.
The beginning product’s pureness and bit dimension distribution are critical; submicron or micron-scale precursors generate similarly sized rounds after processing.
Post-synthesis, the product undergoes strenuous sieving, electrostatic splitting up, and laser diffraction evaluation to make certain tight particle size circulation (PSD), usually varying from 1 to 50 µm depending upon application.
2.2 Surface Alteration and Useful Tailoring
To boost compatibility with organic matrices such as silicones, epoxies, and polyurethanes, round alumina is typically surface-treated with coupling representatives.
Silane coupling representatives– such as amino, epoxy, or vinyl practical silanes– type covalent bonds with hydroxyl groups on the alumina surface while giving organic performance that connects with the polymer matrix.
This treatment improves interfacial adhesion, minimizes filler-matrix thermal resistance, and stops heap, resulting in more uniform composites with superior mechanical and thermal performance.
Surface area coverings can additionally be crafted to pass on hydrophobicity, boost dispersion in nonpolar resins, or make it possible for stimuli-responsive behavior in smart thermal products.
Quality assurance includes measurements of BET area, faucet density, thermal conductivity (usually 25– 35 W/(m · K )for dense α-alumina), and contamination profiling using ICP-MS to omit Fe, Na, and K at ppm degrees.
Batch-to-batch uniformity is important for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and Interface Design
Round alumina is mostly employed as a high-performance filler to improve the thermal conductivity of polymer-based products used in electronic packaging, LED illumination, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), packing with 60– 70 vol% spherical alumina can increase this to 2– 5 W/(m · K), sufficient for efficient warm dissipation in small tools.
The high inherent thermal conductivity of α-alumina, incorporated with very little phonon scattering at smooth particle-particle and particle-matrix user interfaces, enables effective warm transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) continues to be a limiting factor, yet surface area functionalization and maximized dispersion methods aid reduce this obstacle.
In thermal interface materials (TIMs), spherical alumina reduces call resistance between heat-generating components (e.g., CPUs, IGBTs) and warm sinks, preventing getting too hot and extending gadget lifespan.
Its electrical insulation (resistivity > 10 ¹² Ω · centimeters) guarantees security in high-voltage applications, identifying it from conductive fillers like steel or graphite.
3.2 Mechanical Stability and Integrity
Beyond thermal efficiency, spherical alumina boosts the mechanical effectiveness of compounds by increasing hardness, modulus, and dimensional security.
The spherical shape distributes stress and anxiety uniformly, lowering crack initiation and breeding under thermal biking or mechanical load.
This is specifically vital in underfill products and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal growth (CTE) inequality can cause delamination.
By adjusting filler loading and fragment size distribution (e.g., bimodal blends), the CTE of the compound can be tuned to match that of silicon or published motherboard, lessening thermo-mechanical stress.
In addition, the chemical inertness of alumina avoids destruction in moist or corrosive atmospheres, ensuring lasting integrity in automotive, commercial, and outside electronics.
4. Applications and Technical Advancement
4.1 Electronics and Electric Vehicle Equipments
Spherical alumina is a key enabler in the thermal administration of high-power electronic devices, consisting of protected gateway bipolar transistors (IGBTs), power materials, and battery management systems in electric vehicles (EVs).
In EV battery packs, it is integrated right into potting compounds and phase change materials to stop thermal runaway by uniformly distributing warm across cells.
LED suppliers utilize it in encapsulants and second optics to preserve lumen outcome and color consistency by minimizing junction temperature.
In 5G framework and information facilities, where heat flux densities are rising, round alumina-filled TIMs make sure steady procedure of high-frequency chips and laser diodes.
Its duty is broadening right into innovative packaging technologies such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Sustainable Innovation
Future growths focus on crossbreed filler systems incorporating round alumina with boron nitride, aluminum nitride, or graphene to accomplish collaborating thermal performance while keeping electrical insulation.
Nano-spherical alumina (sub-100 nm) is being explored for transparent ceramics, UV layers, and biomedical applications, though obstacles in dispersion and price continue to be.
Additive manufacturing of thermally conductive polymer compounds making use of round alumina enables complex, topology-optimized heat dissipation structures.
Sustainability efforts include energy-efficient spheroidization procedures, recycling of off-spec material, and life-cycle analysis to decrease the carbon impact of high-performance thermal materials.
In summary, round alumina represents a vital crafted product at the crossway of ceramics, composites, and thermal science.
Its unique mix of morphology, pureness, and efficiency makes it important in the recurring miniaturization and power climax of modern-day digital and power systems.
