1. Product Principles and Crystal Chemistry
1.1 Composition and Polymorphic Structure
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its remarkable firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in piling sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most highly relevant.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) lead to a high melting factor (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 â»â¶/ K), and exceptional resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks an indigenous glazed stage, adding to its stability in oxidizing and harsh atmospheres up to 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, relying on polytype) also enhances it with semiconductor residential properties, allowing twin use in architectural and electronic applications.
1.2 Sintering Obstacles and Densification Methods
Pure SiC is very hard to densify because of its covalent bonding and low self-diffusion coefficients, requiring using sintering aids or innovative handling methods.
Reaction-bonded SiC (RB-SiC) is produced by infiltrating permeable carbon preforms with molten silicon, forming SiC in situ; this method returns near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert ambience, achieving > 99% academic density and superior mechanical residential properties.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al â‚‚ O TWO– Y TWO O FIVE, forming a short-term fluid that enhances diffusion yet may reduce high-temperature stamina as a result of grain-boundary phases.
Hot pressing and stimulate plasma sintering (SPS) supply rapid, pressure-assisted densification with great microstructures, perfect for high-performance elements requiring very little grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Strength, Hardness, and Put On Resistance
Silicon carbide porcelains display Vickers hardness values of 25– 30 GPa, second just to diamond and cubic boron nitride among design materials.
Their flexural toughness commonly ranges from 300 to 600 MPa, with fracture sturdiness (K_IC) of 3– 5 MPa · m ONE/ ²– modest for porcelains but improved with microstructural engineering such as whisker or fiber support.
The mix of high solidity and elastic modulus (~ 410 GPa) makes SiC exceptionally immune to rough and abrasive wear, exceeding tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives several times longer than conventional options.
Its low density (~ 3.1 g/cm THREE) more adds to use resistance by decreasing inertial pressures in high-speed turning components.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinct attributes is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline forms, and as much as 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals other than copper and aluminum.
This building enables efficient heat dissipation in high-power electronic substratums, brake discs, and heat exchanger components.
Coupled with low thermal expansion, SiC exhibits outstanding thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths show durability to fast temperature modifications.

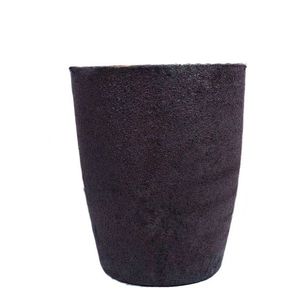

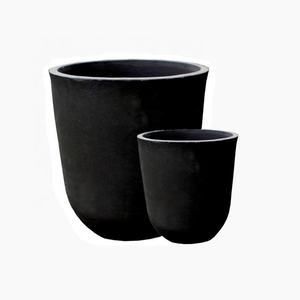

For instance, SiC crucibles can be warmed from area temperature level to 1400 ° C in mins without breaking, an accomplishment unattainable for alumina or zirconia in comparable problems.
In addition, SiC preserves toughness up to 1400 ° C in inert ambiences, making it perfect for heater components, kiln furniture, and aerospace components subjected to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Minimizing Ambiences
At temperatures listed below 800 ° C, SiC is very steady in both oxidizing and minimizing atmospheres.
Above 800 ° C in air, a protective silica (SiO ₂) layer kinds on the surface area through oxidation (SiC + 3/2 O TWO → SiO TWO + CO), which passivates the material and slows additional deterioration.
Nonetheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)â‚„, resulting in increased economic crisis– a crucial factor to consider in turbine and burning applications.
In reducing ambiences or inert gases, SiC stays secure as much as its decay temperature level (~ 2700 ° C), with no phase modifications or stamina loss.
This security makes it suitable for liquified steel handling, such as aluminum or zinc crucibles, where it stands up to wetting and chemical strike much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid mixes (e.g., HF– HNO FIVE).
It reveals excellent resistance to alkalis up to 800 ° C, though long term direct exposure to thaw NaOH or KOH can cause surface area etching via formation of soluble silicates.
In liquified salt settings– such as those in focused solar energy (CSP) or atomic power plants– SiC demonstrates exceptional corrosion resistance compared to nickel-based superalloys.
This chemical robustness underpins its usage in chemical procedure devices, including valves, linings, and warmth exchanger tubes dealing with hostile media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Makes Use Of in Energy, Protection, and Production
Silicon carbide porcelains are important to many high-value commercial systems.
In the power sector, they function as wear-resistant liners in coal gasifiers, elements in nuclear gas cladding (SiC/SiC compounds), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density proportion supplies premium defense against high-velocity projectiles compared to alumina or boron carbide at lower price.
In manufacturing, SiC is made use of for accuracy bearings, semiconductor wafer dealing with parts, and rough blowing up nozzles as a result of its dimensional security and purity.
Its usage in electric automobile (EV) inverters as a semiconductor substratum is rapidly expanding, driven by performance gains from wide-bandgap electronics.
4.2 Next-Generation Developments and Sustainability
Recurring research focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile behavior, improved toughness, and preserved strength over 1200 ° C– suitable for jet engines and hypersonic vehicle leading sides.
Additive production of SiC via binder jetting or stereolithography is progressing, making it possible for complex geometries formerly unattainable with typical forming approaches.
From a sustainability viewpoint, SiC’s longevity decreases substitute frequency and lifecycle exhausts in commercial systems.
Recycling of SiC scrap from wafer cutting or grinding is being established with thermal and chemical recuperation processes to recover high-purity SiC powder.
As markets push towards higher performance, electrification, and extreme-environment procedure, silicon carbide-based porcelains will certainly continue to be at the forefront of sophisticated materials design, bridging the void in between architectural strength and practical flexibility.
