1. Basic Composition and Structural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Transition

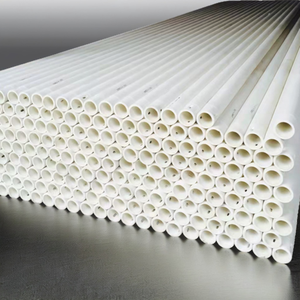

(Quartz Ceramics)
Quartz porcelains, additionally called fused silica or integrated quartz, are a course of high-performance not natural materials derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) type.
Unlike conventional porcelains that count on polycrystalline frameworks, quartz porcelains are identified by their full absence of grain limits due to their glassy, isotropic network of SiO four tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is attained through high-temperature melting of natural quartz crystals or artificial silica forerunners, adhered to by fast cooling to stop formation.
The resulting product contains typically over 99.9% SiO â‚‚, with trace impurities such as alkali metals (Na âº, K âº), aluminum, and iron kept at parts-per-million degrees to preserve optical clearness, electric resistivity, and thermal performance.
The absence of long-range order removes anisotropic actions, making quartz ceramics dimensionally stable and mechanically consistent in all instructions– an important benefit in precision applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
One of one of the most specifying features of quartz porcelains is their incredibly reduced coefficient of thermal expansion (CTE), typically around 0.55 × 10 â»â¶/ K between 20 ° C and 300 ° C.
This near-zero expansion develops from the flexible Si– O– Si bond angles in the amorphous network, which can change under thermal tension without damaging, permitting the product to withstand rapid temperature level changes that would crack traditional ceramics or metals.
Quartz ceramics can sustain thermal shocks going beyond 1000 ° C, such as direct immersion in water after heating up to red-hot temperatures, without breaking or spalling.
This residential property makes them vital in settings entailing duplicated home heating and cooling down cycles, such as semiconductor handling heating systems, aerospace components, and high-intensity illumination systems.
Furthermore, quartz porcelains keep structural integrity up to temperatures of roughly 1100 ° C in continual solution, with temporary exposure tolerance approaching 1600 ° C in inert ambiences.
( Quartz Ceramics)
Beyond thermal shock resistance, they show high softening temperature levels (~ 1600 ° C )and excellent resistance to devitrification– though long term exposure above 1200 ° C can initiate surface area crystallization into cristobalite, which might endanger mechanical strength due to volume modifications during stage changes.
2. Optical, Electrical, and Chemical Properties of Fused Silica Systems
2.1 Broadband Transparency and Photonic Applications
Quartz porcelains are renowned for their extraordinary optical transmission throughout a large spectral array, extending from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the absence of contaminations and the homogeneity of the amorphous network, which lessens light spreading and absorption.
High-purity synthetic fused silica, produced through flame hydrolysis of silicon chlorides, achieves even greater UV transmission and is used in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damage threshold– withstanding breakdown under intense pulsed laser irradiation– makes it optimal for high-energy laser systems made use of in fusion research and industrial machining.
Moreover, its reduced autofluorescence and radiation resistance make certain integrity in clinical instrumentation, including spectrometers, UV curing systems, and nuclear tracking devices.
2.2 Dielectric Efficiency and Chemical Inertness
From an electrical point ofview, quartz ceramics are exceptional insulators with volume resistivity exceeding 10 ¹⸠Ω · cm at space temperature level and a dielectric constant of approximately 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) makes sure marginal power dissipation in high-frequency and high-voltage applications, making them suitable for microwave home windows, radar domes, and insulating substratums in digital assemblies.
These residential properties continue to be steady over a wide temperature level variety, unlike lots of polymers or standard porcelains that weaken electrically under thermal anxiety.
Chemically, quartz ceramics exhibit exceptional inertness to many acids, including hydrochloric, nitric, and sulfuric acids, due to the security of the Si– O bond.
Nevertheless, they are susceptible to strike by hydrofluoric acid (HF) and solid alkalis such as hot salt hydroxide, which damage the Si– O– Si network.
This discerning sensitivity is exploited in microfabrication procedures where regulated etching of merged silica is needed.
In aggressive industrial settings– such as chemical processing, semiconductor wet benches, and high-purity liquid handling– quartz ceramics act as liners, view glasses, and reactor elements where contamination have to be reduced.
3. Manufacturing Processes and Geometric Engineering of Quartz Ceramic Components
3.1 Thawing and Developing Methods
The production of quartz porcelains entails numerous specialized melting approaches, each tailored to certain purity and application requirements.
Electric arc melting uses high-purity quartz sand thawed in a water-cooled copper crucible under vacuum cleaner or inert gas, generating big boules or tubes with exceptional thermal and mechanical homes.
Flame blend, or combustion synthesis, includes burning silicon tetrachloride (SiCl four) in a hydrogen-oxygen flame, transferring great silica particles that sinter right into a transparent preform– this method produces the greatest optical high quality and is used for synthetic merged silica.
Plasma melting supplies a different course, offering ultra-high temperature levels and contamination-free processing for specific niche aerospace and protection applications.
As soon as melted, quartz ceramics can be shaped through precision spreading, centrifugal forming (for tubes), or CNC machining of pre-sintered blanks.
Because of their brittleness, machining requires diamond devices and careful control to avoid microcracking.
3.2 Precision Construction and Surface Area Ending Up
Quartz ceramic components are usually fabricated into complicated geometries such as crucibles, tubes, poles, windows, and custom insulators for semiconductor, solar, and laser industries.
Dimensional precision is essential, particularly in semiconductor manufacturing where quartz susceptors and bell containers have to keep accurate positioning and thermal uniformity.
Surface area finishing plays an important function in performance; polished surfaces minimize light spreading in optical components and reduce nucleation websites for devitrification in high-temperature applications.
Engraving with buffered HF solutions can generate regulated surface appearances or remove damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleansed and baked to remove surface-adsorbed gases, making sure minimal outgassing and compatibility with sensitive processes like molecular beam of light epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Manufacturing
Quartz ceramics are fundamental materials in the manufacture of integrated circuits and solar cells, where they serve as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to endure high temperatures in oxidizing, minimizing, or inert environments– integrated with reduced metal contamination– guarantees process purity and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz parts keep dimensional stability and resist bending, stopping wafer damage and imbalance.
In photovoltaic production, quartz crucibles are used to expand monocrystalline silicon ingots via the Czochralski procedure, where their pureness straight affects the electrical quality of the final solar batteries.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sterilization systems, quartz ceramic envelopes contain plasma arcs at temperatures surpassing 1000 ° C while transmitting UV and visible light successfully.
Their thermal shock resistance avoids failing during rapid light ignition and shutdown cycles.
In aerospace, quartz ceramics are utilized in radar home windows, sensing unit real estates, and thermal protection systems due to their reduced dielectric constant, high strength-to-density ratio, and stability under aerothermal loading.
In analytical chemistry and life sciences, integrated silica capillaries are essential in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness prevents sample adsorption and ensures precise splitting up.
In addition, quartz crystal microbalances (QCMs), which count on the piezoelectric homes of crystalline quartz (distinct from fused silica), use quartz porcelains as safety real estates and protecting supports in real-time mass picking up applications.
To conclude, quartz ceramics represent an one-of-a-kind intersection of severe thermal durability, optical openness, and chemical pureness.
Their amorphous structure and high SiO â‚‚ web content make it possible for efficiency in settings where traditional materials fall short, from the heart of semiconductor fabs to the edge of space.
As technology advances toward greater temperatures, better precision, and cleaner processes, quartz porcelains will certainly continue to function as a critical enabler of innovation throughout science and sector.
