1. Material Fundamentals and Architectural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

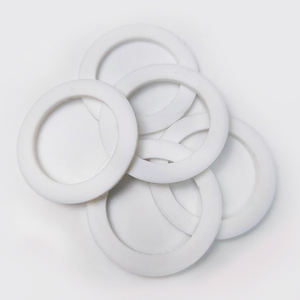

(Alumina Ceramic Substrates)
Alumina ceramic substratums, mainly made up of light weight aluminum oxide (Al two O FOUR), act as the backbone of contemporary electronic product packaging as a result of their phenomenal equilibrium of electrical insulation, thermal security, mechanical stamina, and manufacturability.
The most thermodynamically stable phase of alumina at high temperatures is diamond, or α-Al ₂ O SIX, which takes shape in a hexagonal close-packed oxygen lattice with light weight aluminum ions occupying two-thirds of the octahedral interstitial websites.
This dense atomic setup imparts high hardness (Mohs 9), excellent wear resistance, and strong chemical inertness, making α-alumina ideal for harsh operating settings.
Business substrates commonly include 90– 99.8% Al â‚‚ O FIVE, with small additions of silica (SiO TWO), magnesia (MgO), or unusual planet oxides made use of as sintering help to advertise densification and control grain growth during high-temperature handling.
Higher purity grades (e.g., 99.5% and above) show remarkable electric resistivity and thermal conductivity, while lower pureness versions (90– 96%) supply economical services for less requiring applications.
1.2 Microstructure and Problem Design for Electronic Dependability
The efficiency of alumina substratums in electronic systems is critically dependent on microstructural harmony and issue reduction.
A penalty, equiaxed grain framework– typically ranging from 1 to 10 micrometers– ensures mechanical integrity and reduces the chance of crack proliferation under thermal or mechanical tension.
Porosity, especially interconnected or surface-connected pores, have to be lessened as it weakens both mechanical stamina and dielectric performance.
Advanced processing methods such as tape casting, isostatic pressing, and controlled sintering in air or controlled atmospheres enable the production of substratums with near-theoretical thickness (> 99.5%) and surface roughness below 0.5 µm, necessary for thin-film metallization and cord bonding.
In addition, impurity segregation at grain boundaries can lead to leak currents or electrochemical movement under predisposition, necessitating stringent control over basic material pureness and sintering problems to make sure long-term reliability in damp or high-voltage environments.
2. Production Processes and Substratum Construction Technologies
( Alumina Ceramic Substrates)
2.1 Tape Spreading and Eco-friendly Body Handling
The manufacturing of alumina ceramic substratums begins with the prep work of an extremely dispersed slurry consisting of submicron Al two O four powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is processed using tape spreading– a continual approach where the suspension is spread over a moving carrier movie making use of a precision physician blade to achieve uniform thickness, normally between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “eco-friendly tape” is versatile and can be punched, pierced, or laser-cut to form by means of holes for vertical affiliations.
Numerous layers might be laminated flooring to develop multilayer substrates for complex circuit combination, although most of commercial applications utilize single-layer configurations due to cost and thermal growth considerations.
The eco-friendly tapes are then carefully debound to eliminate natural ingredients through controlled thermal decomposition prior to final sintering.
2.2 Sintering and Metallization for Circuit Combination
Sintering is performed in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to accomplish complete densification.
The direct contraction during sintering– commonly 15– 20%– need to be specifically anticipated and compensated for in the layout of environment-friendly tapes to guarantee dimensional precision of the final substratum.
Following sintering, metallization is related to form conductive traces, pads, and vias.
2 key methods dominate: thick-film printing and thin-film deposition.
In thick-film innovation, pastes containing steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a decreasing ambience to form durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or evaporation are utilized to deposit attachment layers (e.g., titanium or chromium) followed by copper or gold, making it possible for sub-micron patterning through photolithography.
Vias are full of conductive pastes and terminated to develop electric interconnections in between layers in multilayer designs.
3. Functional Qualities and Performance Metrics in Electronic Solution
3.1 Thermal and Electric Behavior Under Operational Anxiety
Alumina substrates are valued for their desirable mix of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al â‚‚ O ₃), which makes it possible for effective warm dissipation from power tools, and high volume resistivity (> 10 ¹ⴠΩ · cm), guaranteeing minimal leakage current.
Their dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is steady over a wide temperature and frequency range, making them appropriate for high-frequency circuits approximately several gigahertz, although lower-κ materials like light weight aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal growth (CTE) of alumina (~ 6.8– 7.2 ppm/K) is reasonably well-matched to that of silicon (~ 3 ppm/K) and particular product packaging alloys, reducing thermo-mechanical stress and anxiety throughout gadget operation and thermal biking.
Nevertheless, the CTE inequality with silicon stays an issue in flip-chip and direct die-attach configurations, typically requiring certified interposers or underfill materials to minimize exhaustion failure.
3.2 Mechanical Toughness and Ecological Durability
Mechanically, alumina substrates display high flexural stamina (300– 400 MPa) and excellent dimensional security under load, allowing their use in ruggedized electronic devices for aerospace, auto, and industrial control systems.
They are resistant to vibration, shock, and creep at elevated temperature levels, keeping structural integrity as much as 1500 ° C in inert ambiences.
In moist environments, high-purity alumina shows very little moisture absorption and outstanding resistance to ion migration, ensuring lasting integrity in outdoor and high-humidity applications.
Surface solidity additionally shields versus mechanical damages during handling and setting up, although care must be taken to stay clear of side chipping due to inherent brittleness.
4. Industrial Applications and Technological Impact Throughout Sectors
4.1 Power Electronics, RF Modules, and Automotive Solutions
Alumina ceramic substratums are common in power digital components, including protected entrance bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they supply electrical seclusion while promoting warmth transfer to warm sinks.
In superhigh frequency (RF) and microwave circuits, they function as provider systems for hybrid incorporated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks because of their secure dielectric buildings and low loss tangent.
In the automobile sector, alumina substratums are utilized in engine control units (ECUs), sensor plans, and electric lorry (EV) power converters, where they withstand heats, thermal biking, and exposure to corrosive fluids.
Their dependability under severe conditions makes them essential for safety-critical systems such as anti-lock braking (ABS) and advanced driver help systems (ADAS).
4.2 Medical Instruments, Aerospace, and Arising Micro-Electro-Mechanical Systems
Past customer and industrial electronic devices, alumina substrates are utilized in implantable medical gadgets such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are critical.
In aerospace and defense, they are made use of in avionics, radar systems, and satellite interaction components because of their radiation resistance and stability in vacuum settings.
In addition, alumina is significantly utilized as a structural and insulating platform in micro-electro-mechanical systems (MEMS), including stress sensing units, accelerometers, and microfluidic devices, where its chemical inertness and compatibility with thin-film processing are beneficial.
As electronic systems continue to require greater power densities, miniaturization, and integrity under extreme problems, alumina ceramic substratums continue to be a foundation material, linking the void between performance, expense, and manufacturability in sophisticated digital product packaging.
