1. Chemical and Structural Basics of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

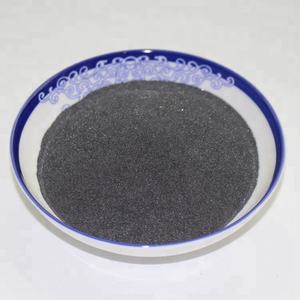

(Boron Carbide Podwer)
Boron carbide (B â‚„ C) is a non-metallic ceramic compound renowned for its outstanding firmness, thermal stability, and neutron absorption capacity, positioning it amongst the hardest well-known materials– surpassed only by cubic boron nitride and ruby.
Its crystal framework is based upon a rhombohedral lattice made up of 12-atom icosahedra (mostly B â‚â‚‚ or B â‚â‚ C) adjoined by linear C-B-C or C-B-B chains, creating a three-dimensional covalent network that imparts amazing mechanical toughness.
Unlike numerous ceramics with dealt with stoichiometry, boron carbide exhibits a vast array of compositional versatility, normally ranging from B FOUR C to B â‚â‚€. ₃ C, because of the replacement of carbon atoms within the icosahedra and architectural chains.
This irregularity affects essential homes such as hardness, electric conductivity, and thermal neutron capture cross-section, enabling home tuning based upon synthesis conditions and designated application.
The presence of innate defects and condition in the atomic setup likewise adds to its unique mechanical habits, consisting of a sensation called “amorphization under anxiety” at high stress, which can restrict performance in extreme influence circumstances.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mostly generated via high-temperature carbothermal decrease of boron oxide (B TWO O ₃) with carbon sources such as petroleum coke or graphite in electric arc furnaces at temperatures in between 1800 ° C and 2300 ° C.
The reaction proceeds as: B TWO O TWO + 7C → 2B FOUR C + 6CO, producing coarse crystalline powder that requires succeeding milling and purification to achieve fine, submicron or nanoscale bits ideal for sophisticated applications.
Different approaches such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis offer courses to higher purity and regulated particle size distribution, though they are frequently limited by scalability and cost.
Powder features– consisting of particle dimension, shape, jumble state, and surface chemistry– are critical parameters that influence sinterability, packaging density, and final part efficiency.
For instance, nanoscale boron carbide powders display improved sintering kinetics as a result of high surface energy, enabling densification at reduced temperature levels, but are susceptible to oxidation and require safety environments during handling and processing.
Surface area functionalization and finishing with carbon or silicon-based layers are progressively employed to enhance dispersibility and prevent grain growth during debt consolidation.

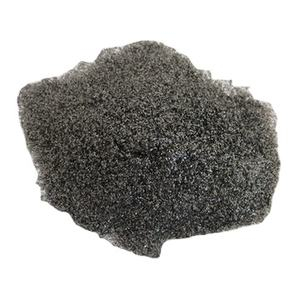

( Boron Carbide Podwer)
2. Mechanical Residences and Ballistic Performance Mechanisms
2.1 Hardness, Fracture Strength, and Use Resistance
Boron carbide powder is the precursor to one of one of the most effective lightweight shield products offered, owing to its Vickers solidity of around 30– 35 Grade point average, which enables it to wear down and blunt inbound projectiles such as bullets and shrapnel.
When sintered right into thick ceramic floor tiles or integrated right into composite shield systems, boron carbide outmatches steel and alumina on a weight-for-weight basis, making it optimal for employees defense, car armor, and aerospace shielding.
However, despite its high firmness, boron carbide has relatively low fracture sturdiness (2.5– 3.5 MPa · m ¹ / ²), rendering it vulnerable to breaking under localized effect or repeated loading.
This brittleness is aggravated at high strain prices, where dynamic failure devices such as shear banding and stress-induced amorphization can lead to disastrous loss of structural integrity.
Recurring research focuses on microstructural design– such as presenting second phases (e.g., silicon carbide or carbon nanotubes), producing functionally rated composites, or making ordered styles– to mitigate these constraints.
2.2 Ballistic Energy Dissipation and Multi-Hit Ability
In personal and automobile shield systems, boron carbide tiles are typically backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that absorb residual kinetic energy and include fragmentation.
Upon impact, the ceramic layer cracks in a regulated way, dissipating power through devices including bit fragmentation, intergranular fracturing, and stage change.
The fine grain structure stemmed from high-purity, nanoscale boron carbide powder enhances these power absorption processes by enhancing the density of grain borders that hamper crack proliferation.
Recent advancements in powder handling have caused the development of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that boost multi-hit resistance– an essential need for army and police applications.
These crafted products keep safety performance even after preliminary influence, dealing with an essential limitation of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Engineering Applications
3.1 Communication with Thermal and Fast Neutrons
Past mechanical applications, boron carbide powder plays an essential function in nuclear modern technology as a result of the high neutron absorption cross-section of the ¹ⰠB isotope (3837 barns for thermal neutrons).
When incorporated right into control rods, shielding materials, or neutron detectors, boron carbide successfully manages fission reactions by catching neutrons and going through the ¹ⰠB( n, α) ⷠLi nuclear reaction, producing alpha fragments and lithium ions that are conveniently included.
This home makes it crucial in pressurized water reactors (PWRs), boiling water activators (BWRs), and research activators, where exact neutron change control is essential for safe operation.
The powder is frequently produced into pellets, coatings, or dispersed within steel or ceramic matrices to create composite absorbers with tailored thermal and mechanical residential or commercial properties.
3.2 Security Under Irradiation and Long-Term Efficiency
A critical advantage of boron carbide in nuclear environments is its high thermal security and radiation resistance up to temperatures exceeding 1000 ° C.
Nonetheless, long term neutron irradiation can bring about helium gas buildup from the (n, α) reaction, causing swelling, microcracking, and destruction of mechanical stability– a phenomenon called “helium embrittlement.”
To alleviate this, researchers are creating doped boron carbide solutions (e.g., with silicon or titanium) and composite layouts that fit gas release and keep dimensional stability over extensive service life.
Additionally, isotopic enrichment of ¹ⰠB enhances neutron capture efficiency while reducing the overall product volume needed, boosting reactor style versatility.
4. Arising and Advanced Technological Integrations
4.1 Additive Production and Functionally Rated Parts
Current progression in ceramic additive production has made it possible for the 3D printing of complex boron carbide elements utilizing strategies such as binder jetting and stereolithography.
In these procedures, fine boron carbide powder is selectively bound layer by layer, complied with by debinding and high-temperature sintering to achieve near-full density.
This capacity enables the fabrication of tailored neutron shielding geometries, impact-resistant lattice structures, and multi-material systems where boron carbide is incorporated with metals or polymers in functionally rated layouts.
Such styles optimize efficiency by combining hardness, durability, and weight efficiency in a single element, opening up brand-new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Past protection and nuclear sectors, boron carbide powder is made use of in rough waterjet reducing nozzles, sandblasting linings, and wear-resistant finishes because of its severe firmness and chemical inertness.
It outshines tungsten carbide and alumina in abrasive environments, specifically when exposed to silica sand or various other tough particulates.
In metallurgy, it serves as a wear-resistant lining for receptacles, chutes, and pumps managing unpleasant slurries.
Its low density (~ 2.52 g/cm FOUR) more boosts its appeal in mobile and weight-sensitive industrial equipment.
As powder quality enhances and processing innovations advance, boron carbide is poised to increase right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
Finally, boron carbide powder stands for a cornerstone material in extreme-environment design, incorporating ultra-high hardness, neutron absorption, and thermal strength in a solitary, functional ceramic system.
Its function in guarding lives, making it possible for atomic energy, and advancing industrial effectiveness underscores its critical importance in modern innovation.
With continued development in powder synthesis, microstructural layout, and making assimilation, boron carbide will certainly continue to be at the leading edge of sophisticated products development for decades ahead.
