1. Crystal Structure and Polytypism of Silicon Carbide
1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Past

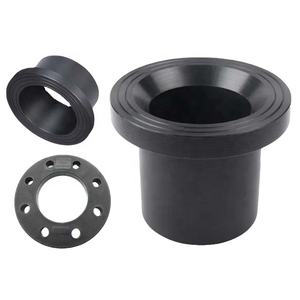

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently adhered ceramic made up of silicon and carbon atoms arranged in a tetrahedral control, creating among the most complicated systems of polytypism in products science.
Unlike a lot of ceramics with a solitary secure crystal structure, SiC exists in over 250 known polytypes– distinct piling series of close-packed Si-C bilayers along the c-axis– ranging from cubic 3C-SiC (additionally known as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.
One of the most usual polytypes used in engineering applications are 3C (cubic), 4H, and 6H (both hexagonal), each showing a little different electronic band frameworks and thermal conductivities.
3C-SiC, with its zinc blende framework, has the narrowest bandgap (~ 2.3 eV) and is commonly expanded on silicon substratums for semiconductor tools, while 4H-SiC offers superior electron wheelchair and is preferred for high-power electronic devices.
The strong covalent bonding and directional nature of the Si– C bond confer extraordinary firmness, thermal stability, and resistance to sneak and chemical strike, making SiC suitable for extreme setting applications.
1.2 Problems, Doping, and Digital Quality
Regardless of its structural intricacy, SiC can be doped to achieve both n-type and p-type conductivity, allowing its usage in semiconductor gadgets.
Nitrogen and phosphorus serve as benefactor contaminations, presenting electrons right into the transmission band, while aluminum and boron act as acceptors, producing holes in the valence band.
Nonetheless, p-type doping efficiency is restricted by high activation powers, especially in 4H-SiC, which poses challenges for bipolar gadget design.
Indigenous problems such as screw misplacements, micropipes, and piling mistakes can deteriorate gadget performance by working as recombination centers or leak courses, requiring top quality single-crystal development for electronic applications.
The broad bandgap (2.3– 3.3 eV depending upon polytype), high break down electrical field (~ 3 MV/cm), and superb thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC much above silicon in high-temperature, high-voltage, and high-frequency power electronic devices.
2. Processing and Microstructural Design

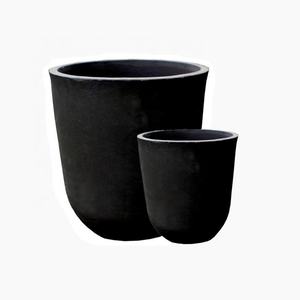

( Silicon Carbide Ceramics)
2.1 Sintering and Densification Techniques
Silicon carbide is naturally tough to densify because of its strong covalent bonding and low self-diffusion coefficients, calling for innovative processing methods to attain full density without additives or with minimal sintering aids.
Pressureless sintering of submicron SiC powders is feasible with the enhancement of boron and carbon, which advertise densification by eliminating oxide layers and boosting solid-state diffusion.
Hot pushing applies uniaxial pressure during home heating, allowing full densification at reduced temperatures (~ 1800– 2000 ° C )and producing fine-grained, high-strength elements ideal for cutting tools and put on parts.
For large or intricate shapes, reaction bonding is employed, where porous carbon preforms are infiltrated with molten silicon at ~ 1600 ° C, forming β-SiC sitting with marginal contraction.
Nevertheless, recurring free silicon (~ 5– 10%) stays in the microstructure, limiting high-temperature efficiency and oxidation resistance above 1300 ° C.
2.2 Additive Production and Near-Net-Shape Fabrication
Recent advancements in additive production (AM), especially binder jetting and stereolithography utilizing SiC powders or preceramic polymers, allow the construction of intricate geometries formerly unattainable with standard methods.
In polymer-derived ceramic (PDC) routes, liquid SiC forerunners are formed via 3D printing and afterwards pyrolyzed at heats to produce amorphous or nanocrystalline SiC, usually needing additional densification.
These strategies reduce machining expenses and material waste, making SiC more accessible for aerospace, nuclear, and heat exchanger applications where elaborate styles enhance efficiency.
Post-processing actions such as chemical vapor infiltration (CVI) or fluid silicon seepage (LSI) are sometimes utilized to boost density and mechanical honesty.
3. Mechanical, Thermal, and Environmental Performance
3.1 Strength, Hardness, and Put On Resistance
Silicon carbide ranks among the hardest known products, with a Mohs hardness of ~ 9.5 and Vickers firmness surpassing 25 GPa, making it highly immune to abrasion, erosion, and scratching.
Its flexural strength generally ranges from 300 to 600 MPa, relying on handling approach and grain size, and it retains stamina at temperatures up to 1400 ° C in inert environments.
Crack strength, while moderate (~ 3– 4 MPa · m 1ST/ TWO), is sufficient for many structural applications, especially when incorporated with fiber reinforcement in ceramic matrix composites (CMCs).
SiC-based CMCs are utilized in wind turbine blades, combustor linings, and brake systems, where they use weight cost savings, gas performance, and prolonged service life over metallic counterparts.
Its excellent wear resistance makes SiC ideal for seals, bearings, pump elements, and ballistic shield, where toughness under extreme mechanical loading is critical.
3.2 Thermal Conductivity and Oxidation Stability
Among SiC’s most beneficial homes is its high thermal conductivity– as much as 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline types– exceeding that of numerous steels and allowing effective warm dissipation.
This residential property is essential in power electronic devices, where SiC gadgets produce less waste warm and can operate at greater power thickness than silicon-based gadgets.
At elevated temperature levels in oxidizing settings, SiC creates a safety silica (SiO TWO) layer that slows down more oxidation, providing good ecological durability as much as ~ 1600 ° C.
Nonetheless, in water vapor-rich environments, this layer can volatilize as Si(OH)â‚„, leading to sped up degradation– an essential difficulty in gas turbine applications.
4. Advanced Applications in Energy, Electronic Devices, and Aerospace
4.1 Power Electronic Devices and Semiconductor Tools
Silicon carbide has actually transformed power electronic devices by enabling devices such as Schottky diodes, MOSFETs, and JFETs that run at higher voltages, frequencies, and temperature levels than silicon matchings.
These tools decrease energy losses in electrical lorries, renewable resource inverters, and commercial motor drives, contributing to international energy effectiveness improvements.
The capacity to operate at joint temperature levels above 200 ° C permits streamlined air conditioning systems and raised system reliability.
Additionally, SiC wafers are utilized as substrates for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), combining the benefits of both wide-bandgap semiconductors.
4.2 Nuclear, Aerospace, and Optical Solutions
In atomic power plants, SiC is an essential part of accident-tolerant fuel cladding, where its low neutron absorption cross-section, radiation resistance, and high-temperature toughness boost security and efficiency.
In aerospace, SiC fiber-reinforced compounds are used in jet engines and hypersonic cars for their lightweight and thermal security.
In addition, ultra-smooth SiC mirrors are utilized in space telescopes due to their high stiffness-to-density proportion, thermal security, and polishability to sub-nanometer roughness.
In recap, silicon carbide ceramics stand for a keystone of modern-day advanced materials, incorporating phenomenal mechanical, thermal, and digital buildings.
Through accurate control of polytype, microstructure, and handling, SiC continues to allow technical developments in power, transportation, and extreme setting engineering.
