1. Product Fundamentals and Crystallographic Quality
1.1 Phase Composition and Polymorphic Actions

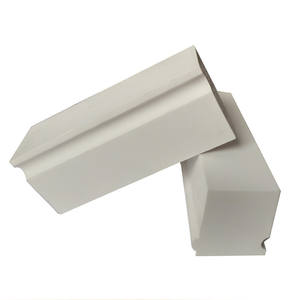

(Alumina Ceramic Blocks)
Alumina (Al ₂ O ₃), especially in its α-phase type, is among one of the most commonly used technical ceramics because of its excellent balance of mechanical strength, chemical inertness, and thermal security.
While aluminum oxide exists in several metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline framework at high temperatures, characterized by a thick hexagonal close-packed (HCP) plan of oxygen ions with light weight aluminum cations occupying two-thirds of the octahedral interstitial websites.
This purchased structure, called corundum, gives high latticework power and solid ionic-covalent bonding, leading to a melting point of approximately 2054 ° C and resistance to phase change under severe thermal problems.
The change from transitional aluminas to α-Al ₂ O five normally happens above 1100 ° C and is come with by substantial volume contraction and loss of surface, making phase control crucial during sintering.
High-purity α-alumina blocks (> 99.5% Al ₂ O FIVE) show superior performance in extreme environments, while lower-grade compositions (90– 95%) might consist of second stages such as mullite or lustrous grain border stages for affordable applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is greatly affected by microstructural attributes including grain dimension, porosity, and grain border communication.
Fine-grained microstructures (grain dimension < 5 µm) normally offer higher flexural toughness (as much as 400 MPa) and boosted fracture toughness compared to coarse-grained counterparts, as smaller sized grains hamper split breeding.
Porosity, even at low levels (1– 5%), considerably decreases mechanical stamina and thermal conductivity, requiring complete densification through pressure-assisted sintering techniques such as warm pressing or warm isostatic pushing (HIP).
Ingredients like MgO are typically presented in trace amounts (≈ 0.1 wt%) to prevent unusual grain growth during sintering, ensuring uniform microstructure and dimensional stability.
The resulting ceramic blocks display high hardness (≈ 1800 HV), exceptional wear resistance, and reduced creep rates at elevated temperature levels, making them appropriate for load-bearing and unpleasant environments.
2. Production and Handling Techniques

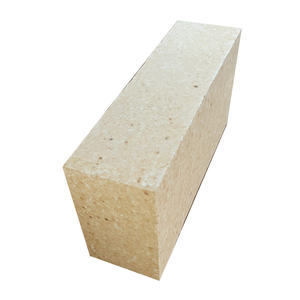

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Methods
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders derived from calcined bauxite by means of the Bayer process or synthesized through rainfall or sol-gel routes for higher pureness.
Powders are crushed to achieve slim bit dimension circulation, enhancing packing thickness and sinterability.
Shaping into near-net geometries is completed with various creating techniques: uniaxial pressing for straightforward blocks, isostatic pushing for uniform thickness in complicated forms, extrusion for lengthy sections, and slip casting for complex or huge parts.
Each technique influences environment-friendly body density and homogeneity, which directly effect final buildings after sintering.
For high-performance applications, advanced forming such as tape casting or gel-casting may be utilized to attain exceptional dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels between 1600 ° C and 1750 ° C enables diffusion-driven densification, where bit necks expand and pores diminish, causing a totally thick ceramic body.
Ambience control and precise thermal profiles are important to prevent bloating, bending, or differential shrinkage.
Post-sintering operations consist of ruby grinding, splashing, and brightening to attain limited tolerances and smooth surface coatings called for in sealing, sliding, or optical applications.
Laser reducing and waterjet machining permit exact modification of block geometry without causing thermal stress and anxiety.
Surface therapies such as alumina covering or plasma splashing can further boost wear or deterioration resistance in specialized service problems.
3. Useful Residences and Efficiency Metrics
3.1 Thermal and Electrical Behavior
Alumina ceramic blocks show moderate thermal conductivity (20– 35 W/(m · K)), dramatically more than polymers and glasses, making it possible for reliable warmth dissipation in digital and thermal management systems.
They keep structural integrity as much as 1600 ° C in oxidizing environments, with low thermal growth (≈ 8 ppm/K), contributing to exceptional thermal shock resistance when properly made.
Their high electric resistivity (> 10 ¹⁴ Ω · cm) and dielectric stamina (> 15 kV/mm) make them suitable electric insulators in high-voltage environments, consisting of power transmission, switchgear, and vacuum cleaner systems.
Dielectric consistent (εᵣ ≈ 9– 10) stays secure over a broad frequency range, supporting use in RF and microwave applications.
These residential properties allow alumina blocks to work accurately in settings where organic materials would certainly weaken or stop working.
3.2 Chemical and Environmental Resilience
Among the most useful features of alumina blocks is their extraordinary resistance to chemical attack.
They are very inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in strong caustics at elevated temperatures), and molten salts, making them suitable for chemical processing, semiconductor manufacture, and pollution control devices.
Their non-wetting actions with lots of molten metals and slags permits usage in crucibles, thermocouple sheaths, and heating system cellular linings.
Furthermore, alumina is non-toxic, biocompatible, and radiation-resistant, increasing its energy into medical implants, nuclear protecting, and aerospace components.
Very little outgassing in vacuum cleaner settings better certifies it for ultra-high vacuum (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technological Assimilation
4.1 Architectural and Wear-Resistant Parts
Alumina ceramic blocks work as essential wear elements in sectors varying from mining to paper production.
They are made use of as linings in chutes, hoppers, and cyclones to stand up to abrasion from slurries, powders, and granular materials, significantly extending life span compared to steel.
In mechanical seals and bearings, alumina blocks supply low friction, high hardness, and corrosion resistance, decreasing upkeep and downtime.
Custom-shaped blocks are integrated into reducing tools, passes away, and nozzles where dimensional stability and edge retention are vital.
Their lightweight nature (thickness ≈ 3.9 g/cm FOUR) likewise contributes to energy financial savings in relocating components.
4.2 Advanced Design and Arising Utilizes
Past traditional duties, alumina blocks are increasingly used in sophisticated technical systems.
In electronics, they work as protecting substratums, heat sinks, and laser dental caries parts because of their thermal and dielectric buildings.
In energy systems, they work as solid oxide fuel cell (SOFC) elements, battery separators, and fusion activator plasma-facing materials.
Additive production of alumina using binder jetting or stereolithography is emerging, enabling intricate geometries previously unattainable with conventional developing.
Crossbreed structures integrating alumina with metals or polymers with brazing or co-firing are being established for multifunctional systems in aerospace and protection.
As product scientific research advancements, alumina ceramic blocks remain to evolve from easy architectural components into energetic elements in high-performance, sustainable engineering services.
In summary, alumina ceramic blocks stand for a fundamental course of advanced ceramics, incorporating durable mechanical efficiency with outstanding chemical and thermal stability.
Their adaptability throughout industrial, electronic, and clinical domains emphasizes their long-lasting value in modern design and modern technology advancement.
