1. The Nanoscale Style and Material Scientific Research of Aerogels
1.1 Genesis and Fundamental Framework of Aerogel Materials

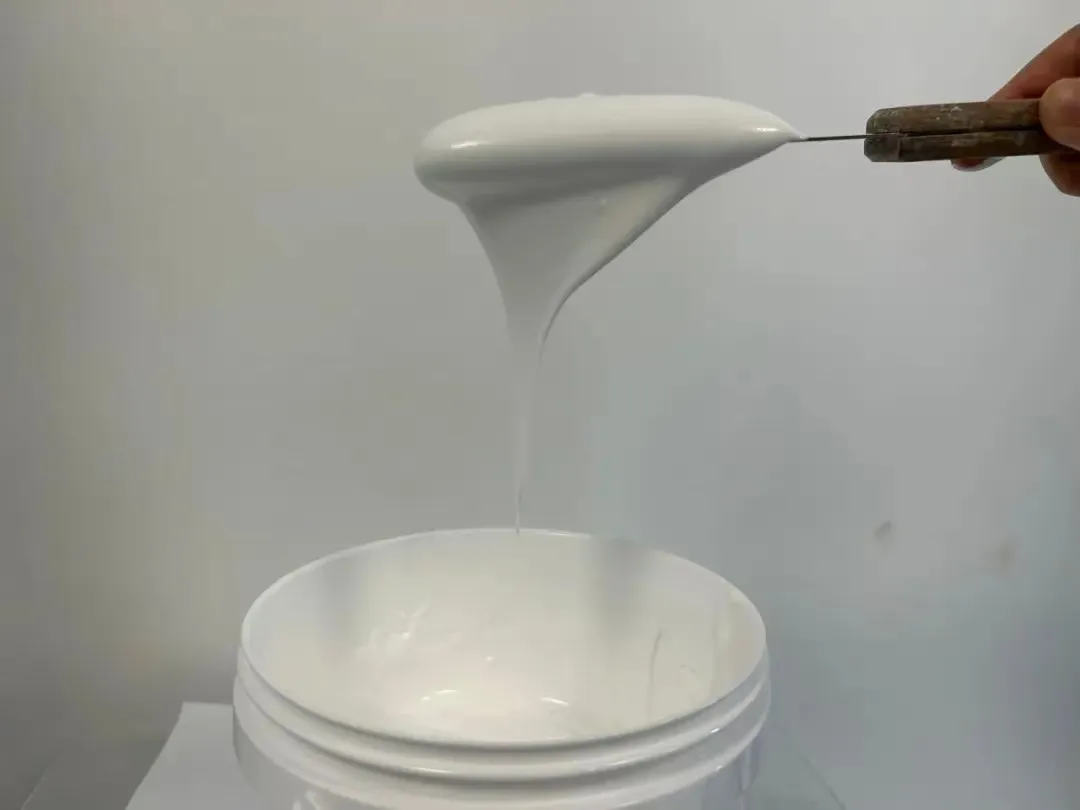

(Aerogel Insulation Coatings)
Aerogel insulation finishes stand for a transformative innovation in thermal administration technology, rooted in the special nanostructure of aerogels– ultra-lightweight, porous materials derived from gels in which the fluid element is replaced with gas without collapsing the solid network.
First established in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory interests for decades because of delicacy and high manufacturing prices.
However, recent advancements in sol-gel chemistry and drying techniques have actually allowed the assimilation of aerogel fragments into adaptable, sprayable, and brushable finish solutions, unlocking their possibility for widespread commercial application.
The core of aerogel’s phenomenal insulating capability depends on its nanoscale permeable structure: normally composed of silica (SiO â‚‚), the material shows porosity exceeding 90%, with pore sizes primarily in the 2– 50 nm range– well listed below the mean cost-free path of air molecules (~ 70 nm at ambient problems).
This nanoconfinement considerably lowers aeriform thermal transmission, as air molecules can not efficiently transfer kinetic power via collisions within such confined rooms.
At the same time, the strong silica network is crafted to be very tortuous and alternate, reducing conductive warm transfer through the solid stage.
The result is a material with among the lowest thermal conductivities of any solid recognized– commonly between 0.012 and 0.018 W/m · K at space temperature– exceeding traditional insulation products like mineral wool, polyurethane foam, or broadened polystyrene.
1.2 Evolution from Monolithic Aerogels to Compound Coatings
Early aerogels were produced as breakable, monolithic blocks, restricting their usage to particular niche aerospace and clinical applications.
The shift towards composite aerogel insulation coverings has been driven by the need for flexible, conformal, and scalable thermal obstacles that can be put on intricate geometries such as pipes, shutoffs, and uneven tools surfaces.
Modern aerogel coatings incorporate finely grated aerogel granules (commonly 1– 10 µm in size) spread within polymeric binders such as polymers, silicones, or epoxies.

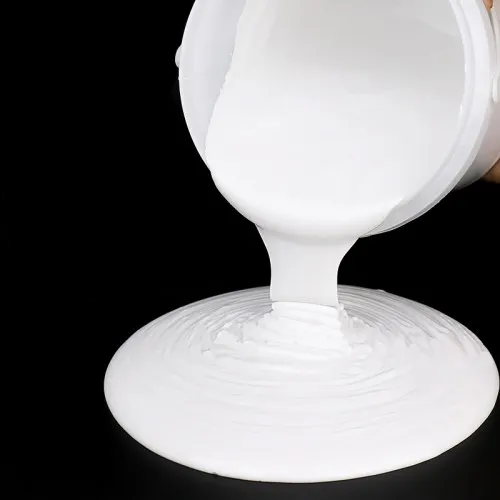

( Aerogel Insulation Coatings)
These hybrid formulations retain a lot of the innate thermal performance of pure aerogels while obtaining mechanical toughness, adhesion, and weather resistance.
The binder phase, while slightly increasing thermal conductivity, offers crucial communication and allows application using standard industrial methods consisting of splashing, rolling, or dipping.
Most importantly, the quantity portion of aerogel fragments is optimized to stabilize insulation efficiency with movie honesty– commonly varying from 40% to 70% by quantity in high-performance formulas.
This composite strategy preserves the Knudsen effect (the suppression of gas-phase conduction in nanopores) while allowing for tunable homes such as versatility, water repellency, and fire resistance.
2. Thermal Performance and Multimodal Heat Transfer Reductions
2.1 Devices of Thermal Insulation at the Nanoscale
Aerogel insulation layers attain their premium efficiency by all at once subduing all 3 modes of heat transfer: transmission, convection, and radiation.
Conductive heat transfer is minimized via the combination of low solid-phase connectivity and the nanoporous framework that restrains gas molecule movement.
Because the aerogel network includes exceptionally slim, interconnected silica hairs (often just a couple of nanometers in size), the path for phonon transport (heat-carrying latticework resonances) is highly restricted.
This structural layout effectively decouples adjacent areas of the layer, decreasing thermal connecting.
Convective heat transfer is naturally missing within the nanopores as a result of the lack of ability of air to develop convection currents in such constrained spaces.
Also at macroscopic scales, properly applied aerogel finishings get rid of air gaps and convective loopholes that afflict traditional insulation systems, specifically in upright or overhead setups.
Radiative warm transfer, which comes to be substantial at elevated temperatures (> 100 ° C), is mitigated with the unification of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These additives raise the coating’s opacity to infrared radiation, scattering and absorbing thermal photons prior to they can traverse the covering thickness.
The harmony of these systems results in a product that gives equivalent insulation efficiency at a portion of the density of standard products– usually achieving R-values (thermal resistance) numerous times higher each density.
2.2 Performance Across Temperature Level and Environmental Conditions
One of one of the most engaging advantages of aerogel insulation coverings is their consistent efficiency across a wide temperature level range, usually varying from cryogenic temperature levels (-200 ° C) to over 600 ° C, relying on the binder system made use of.
At reduced temperatures, such as in LNG pipes or refrigeration systems, aerogel coatings prevent condensation and lower heat access more efficiently than foam-based alternatives.
At high temperatures, especially in industrial procedure equipment, exhaust systems, or power generation facilities, they protect underlying substratums from thermal destruction while decreasing power loss.
Unlike natural foams that may break down or char, silica-based aerogel coverings remain dimensionally steady and non-combustible, adding to passive fire protection methods.
Furthermore, their low tide absorption and hydrophobic surface treatments (frequently achieved using silane functionalization) stop performance deterioration in damp or wet settings– a typical failure mode for fibrous insulation.
3. Formulation Strategies and Practical Assimilation in Coatings
3.1 Binder Selection and Mechanical Property Design
The selection of binder in aerogel insulation coverings is vital to balancing thermal efficiency with sturdiness and application adaptability.
Silicone-based binders use excellent high-temperature security and UV resistance, making them ideal for exterior and commercial applications.
Acrylic binders offer excellent adhesion to steels and concrete, together with convenience of application and low VOC exhausts, ideal for developing envelopes and a/c systems.
Epoxy-modified formulations improve chemical resistance and mechanical stamina, advantageous in marine or corrosive environments.
Formulators also incorporate rheology modifiers, dispersants, and cross-linking representatives to ensure consistent bit circulation, stop clearing up, and improve film development.
Flexibility is very carefully tuned to avoid splitting during thermal cycling or substrate contortion, specifically on vibrant structures like expansion joints or shaking machinery.
3.2 Multifunctional Enhancements and Smart Finish Possible
Beyond thermal insulation, modern-day aerogel coverings are being crafted with added performances.
Some solutions consist of corrosion-inhibiting pigments or self-healing representatives that expand the life expectancy of metallic substrates.
Others integrate phase-change materials (PCMs) within the matrix to offer thermal power storage space, smoothing temperature changes in buildings or digital units.
Arising study explores the integration of conductive nanomaterials (e.g., carbon nanotubes) to enable in-situ tracking of finishing integrity or temperature level circulation– leading the way for “smart” thermal administration systems.
These multifunctional capabilities placement aerogel finishings not simply as easy insulators yet as energetic components in smart infrastructure and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Fostering
4.1 Power Performance in Structure and Industrial Sectors
Aerogel insulation finishes are increasingly released in commercial structures, refineries, and nuclear power plant to reduce energy consumption and carbon exhausts.
Applied to heavy steam lines, boilers, and warmth exchangers, they considerably reduced warmth loss, improving system efficiency and minimizing fuel demand.
In retrofit circumstances, their thin profile enables insulation to be added without significant structural alterations, protecting space and minimizing downtime.
In residential and industrial construction, aerogel-enhanced paints and plasters are made use of on wall surfaces, roofing systems, and windows to enhance thermal convenience and reduce HVAC tons.
4.2 Niche and High-Performance Applications
The aerospace, auto, and electronics markets leverage aerogel layers for weight-sensitive and space-constrained thermal management.
In electric vehicles, they shield battery loads from thermal runaway and exterior warm resources.
In electronics, ultra-thin aerogel layers shield high-power components and protect against hotspots.
Their usage in cryogenic storage, area habitats, and deep-sea tools emphasizes their reliability in extreme atmospheres.
As making scales and costs decrease, aerogel insulation finishings are positioned to become a keystone of next-generation lasting and resistant facilities.
